Vickers Hardness Tester with Measurement Monitor
VICKERS HARDNESS TESTER
Hubungi kami untuk pemesanan dan informasi lainnya

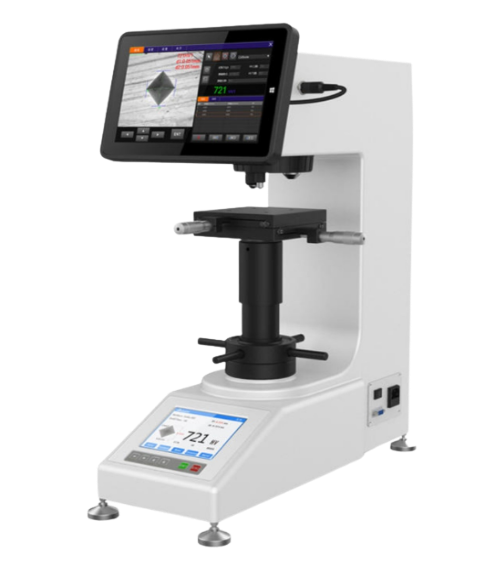

Vickers Hardness Tester with Measurement Monitor
Spesifikasi
| Loading Force | N | 2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0 |
| Kgf | 0.3、0.5、1、2、2.5、3、5、10 | |
| Indentation Measuring Device | MV-100 | |
| Switch of Objectives and Pressure Switch | Auto-turret | |
| Loading Control | Auto Loading, Dwell and Unloading | |
| Magnification of Objective | Observation：10x/40x；Measurement：10x/40x | |
| Video System | iVicky 3.0 Auto Measuring Vickers System | |
| Dwell Time | 5-60s | |
| Measuring Range | 1HV-2967HV | |
| X-Y Anvil | Size：100X100mm； Travel:25mm X 25mm;Resolution：2um | |
| Maximum Height and Width of Specimen | Maximum Height：70mm; Maximum Width：95mm | |
| Power supply | AC220/50Hz; AC110V/60Hz | |
| Dimension | 425X245X490mm | |
| Gross/Net Weight | 45kg/35Kg | |
