Model

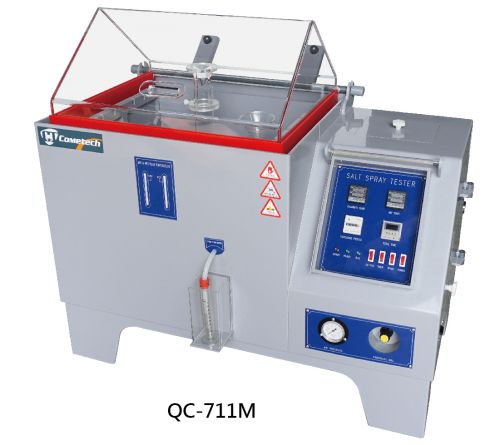

QC-711M

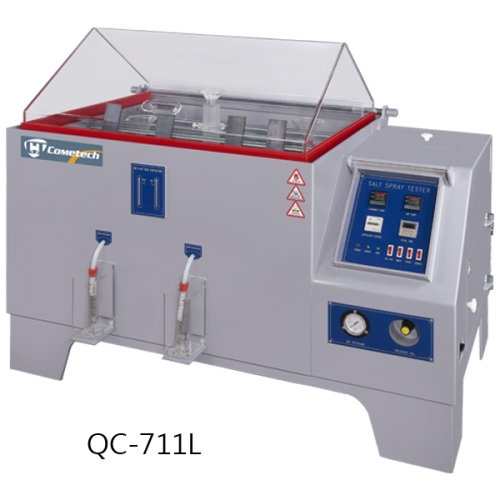

QC-711L

Required Collecting Cup

1Pc

2Pc

Power of Heater

1000W

2000W

Temp.
Range

Chamber

Room Temp. ~ 35℃

Air

Room Temp. ~ 47℃

Machine Functions

Temp. Accuracy

± 0.5℃

Saturated air Pressure (Kg/cm2)

0.8 ~ 2.0 ± 0.1

Spray volume
(ml/80 cm2 /hr.)

0.5 ~ 3.0

P.H.

Salt Spray

6.5 ~ 7.2

Cupric Acetate

3.0 ~ 3.2

Material

Exterior

P.V.C. or P.P

Interior

P.V.C. or P.P

Systems

Salt Solution

Salt Spray, Cupric Acetate

Heating

Titanium alloy Heater

Control

PID Digital electronic + SSR control

Safety System

Circuit system load protection, over heating load protection, insufficient medicinal liquid protection.

Features

※It is made of PP & P.V.C. with strong mechanics structure; Machine frame is acid proof, alkali proof, temperature proof and never aging, suitable for salt spray, cupric acetate various test specifications.

※Patent nozzle makes spray device to spray fog fast and evenly.

※With hydrometer：Assist user to make salt solution and copper acetate solution, through hydrometer to confirm concentration.

※Fog volume and accelerating speed are adjustable for aging.

※Specimen tilt 20°±5 to make the solution which falls on the specimen surface remain at fixed concentration. ※Air tight system: falling fog will not spread out to corrode other metal parts.

※Air tight system: falling fog will not spread out to corrode other metal parts.

※Water will drain automatically if water level exceeds the limitation.

※Exhaust vent：Keep the concentration of fog inside the chamber.

※Functions：Anti-corrosion test for various surface treatments such as anodizing, electroplating, coating…etc.

※Inner tubes with anticorrosive level to less the maintenance times.

Power

Single phase 220V，50/60Hz

Internal Dim.
W × H × D(cm)

60 × 40 × 45

90 × 50 × 60

External Dim.寸
W × H × D(cm)

125 × 112 × 94

155 × 128 × 105

Weight

90 kg

120 kg
