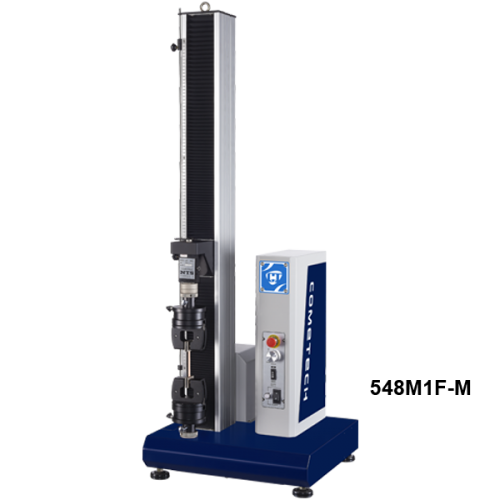

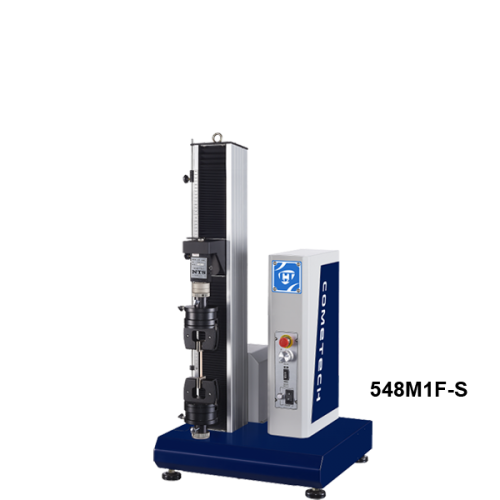

QC-548M1F
COMETECH TENSILE TESTING MACHINE
Hubungi kami untuk pemesanan dan informasi lainnya
QC-548M1F
Spesifikasi
| Model | QC-548M1F-S | QC-548M1F-M |
| Max. Capacity | 5 kN | |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
|
| Force Resolution | 1/50,000 (31 bits) | |
| Load cell accuracy | ±1% under the range 2-100% of the load cell capacity (There are optional load cells with higher accuracy) |
|
| Test Stroke(w/o grip) | 400 mm | 800 mm |
| Stroke Resolution | 0.0001 mm | |
| Speed Range | 0.2 ~ 2000mm/min (digital type setting) | |
| Speed Accuracy | ±1% | |
| Data Sampling Rate | Max.400Hz | |
| Space Between Columns | 80 mm | |
| PC-Port | RJ45(TCP/IP) | |
| Motor Type | Servo Motor | |
| Frame Stiffness | 4.1 kN/mm | |
| Power Supply | Single Phase, 200 ~ 240VAC，5A | |
| Dimension | 50X50X105cm | 50X50X145cm |
| Weight | 65 kgf | 80 kgf |
Hubungi kami untuk pemesanan dan informasi lainnya
