QC-548D2(5kN)
COMETECH TENSILE TESTING MACHINE
Hubungi kami untuk pemesanan dan informasi lainnya
QC-548D2(5kN)
Spesifikasi

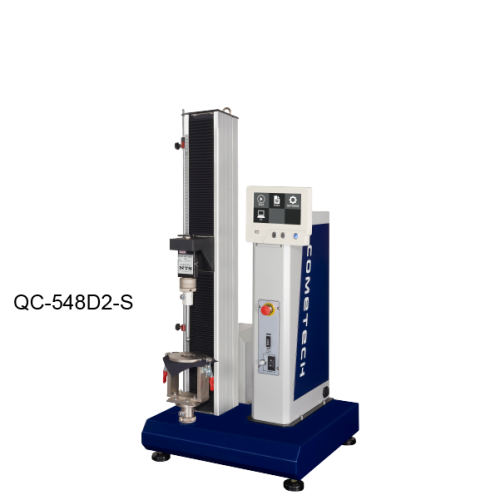

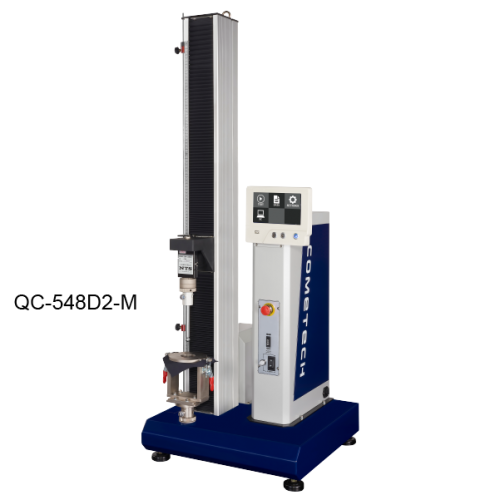

| Model | QC-548D2-S | QC-548D2-M |
| Max. capacity | 5 kN | |
| Force Resolution | 1/10,000 (23 bits) | |
| Load cell accuracy | ±1% under the range 2-100% of the load cell capacity (There are optional load cells with higher accuracy) |
|
| Test stroke(w/o grip) | 400 mm | 800 mm |
| Stroke resolution | 0.0125 mm | |
| Speed range | 8 ~ 550 mm/min (digital type setting) | |
| Stroke resolution | Better than 1% | |
| Data sampling rate | Max. 400 Hz | |
| Cantilever Distance | 80 mm | |
| Connection | RJ45(TCP/IP) | |
| Motor type | DC Motor | |
| Hardware Safety Protection | Upper/Lower Limitation, emergency stop button | |
| Power Supply | Single Phase, 100 ~ 240VAC, 5A | |
| Dimension | 50x50x105cm | 50x50x145cm |
| Weight | 65 kgf | 80 kgf |
