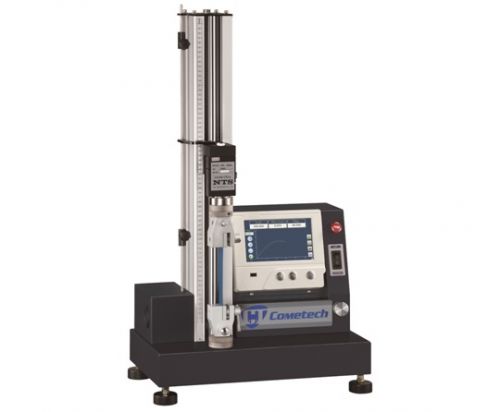

Model

QC-528M1F

Max. capacity

500 N

Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution

1/50,000 (31 bits)

Load cell accuracy

±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)

Test stroke(w/o grip)

400 mm

Stroke resolution

0.05mm

Speed range

1 ~ 600mm/min±5%(Can be set by computer)

PC-Port

RJ45(TCP/IP) [software optional]

Data sampling rate

400Hz (Max.)

Motor type

Step Motor

Feature

※Automatic reading of load cell feature information
※Automatic reading of displacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection

Power Supply

Single phase100 ~ 220VAC
