QC-527M2F

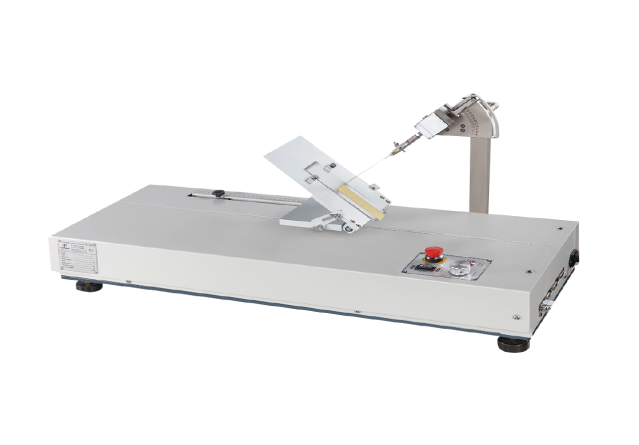

COMETECH TENSILE TESTING MACHINE
Hubungi kami untuk pemesanan dan informasi lainnya
QC-527M2F
Spesifikasi
| Model | QC-527M2F |
|---|---|
| Max. capacity | 500 N |
| Force resolution | 31 bits |
| Force resolution | 1/100,000 |
| Stroke | 600 mm（w/o grip） |
| Stroke resolution | 0.0001 mm |
| Speed range | 100 ~ 30,000 mm/min adjustable |
| Speed accuracy | ± 0.75% |
| Pc connection | RJ45(TCP/IP) |
| Hardware safety protection | Up/down limit, emergency stop button |
| Motor | |
| Servomotor | |
| Feature | ※Force sensor can do position, height, angle and multi-direction adjustment. ※Force sensor with memory lock to record various related parameters, it will automatically change its parameters when change different sensors and no need for other setting. |
| Power | Single phase 200 ~ 240VAC，15A |
| Dimension | 125 × 44 × 71 cm |
| Weight | 100 kg |
