Model

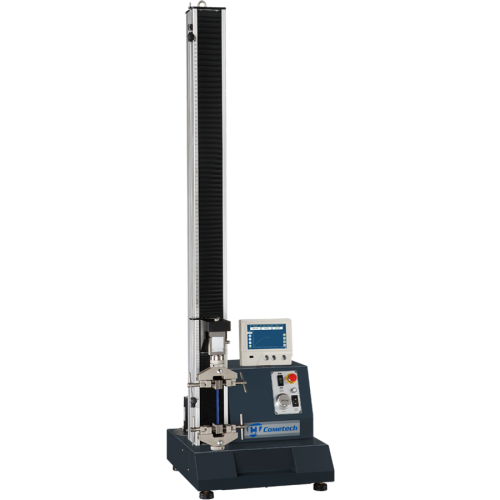

QC-508M2F (Extended)

Max. Capacity

2 kN

Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution

1/100,000 (31 bits)

Load cell accuracy

±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)

Test Stroke(w/o grip)

1100mm

Stroke Resolution

0.0001 mm

Cantilever Distance

70mm

Speed Range

Low Speed Mode : 0.0005~9mm/minHigh
Speed Mode : 0.05~1000mm/min

Speed Accuracy

±1%

PC-Port

RJ45(TCP/IP)

Data Sampling Rate

Max.1200Hz

Motor Type

Servo Motor

Feature

※Force, displacement, time, stress, and strain display in real time
※The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required.
※The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required.
※User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable.
※Automatic return after the test
※Machine protection by force, time, displacement, etc.
※The jog precisely controls displacement.
※Optional display is available for stand-alone mode.
※In user-defined mode, cyclic test and test in a long duration can be achieved.

Power Supply

Single Phase, 200 ~ 240VAC，5A

Dimension

50× 53 × 175 cm

Weight

100 kgf
