Model

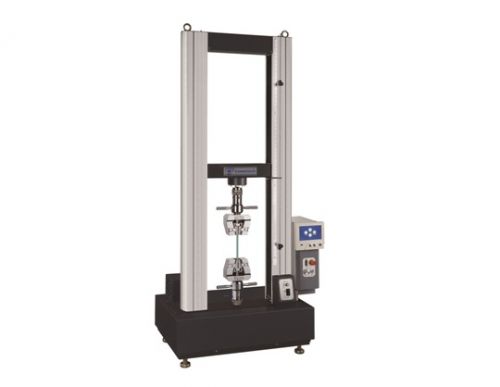

QC-505M1F

Max. capacity

50 kN

Units

Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg

Force Resolution

1/50,000 (31 bits)

Load cell accuracy

±1% under the range 2-100% of the load cell capacity
(There are optional load cells with higher accuracy)

Test stroke(w/o grip)

1100mm

Stroke resolution

0.0001mm

Space between columns

420mm(550mm、680mm、800mm Optional)

Speed range

0.2~ 600mm/min（Can be set by computer digital）

PC-Port

RJ45(TCP/IP)[Software Optional]

Data sampling rate

Max. 400Hz

Hardware safety protection

upper limit, lower limit, emergency stop button

Motor type

Servo Motor

Frame Stiffness

120 kN/mm

Feature

※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection

Power Supply

Single phase 200 ~ 240VAC，8A

Dimension of Machine

90× 60 × 195 cm

Weight of Machine

280 kg
